MC-Foam Lab
Mixer of the Xtra class now Xtra small!
Equipped like the big ones
with the latest mixig head Technology!
Manufaktured out of one piece of V4A, smal, easy and highly efficient!
MC-Foam LabDownload
Simply practical

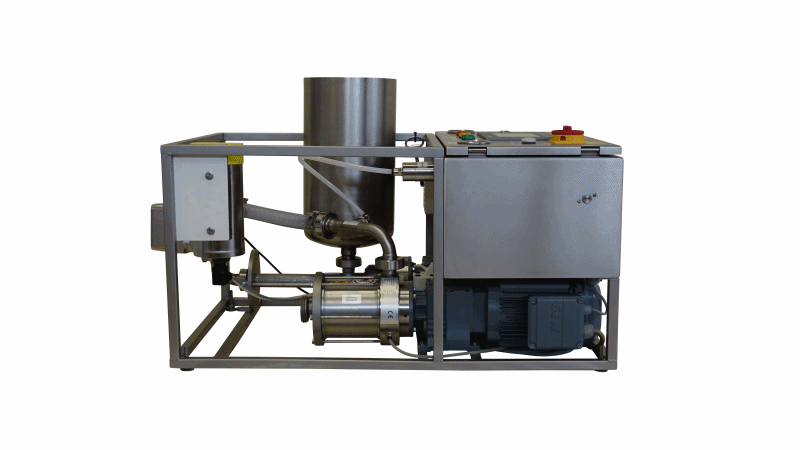

The MC-Foam Lab combines our latest mixing head technology and the smallest possible housing for mobile use.
The MC-Foam Lab is suitable for use in the textile and flooring industries, as well as for use in the wood and paper industry
Applications
- As a laboratory mixer
- For product testing
- Production of very small quantities
- Possibly as a failure protection
Basic Model
Top quality components – precise workmanship
- Mixing head in V4A, housing in V2A
- Intuitive operating terminal (SIEMENS)
- Terminal language in accordance with CE norm
- Fully automated using the latest process computer (SIEMENS)
- Top quality measuring sensor for speedy air regulation and stable foam weight
- Pressure monitoring
- Formulation managemen
- Dry run protection of the pumps
- Wear monitoring
- Double-acting lip seals
- Redundant non-return valves for air mass controller
Technical Data
| Product flow rate* | until max. 800 kg/h |
| Product density* | 1.000 - 1.400 g/l |
| Foam weight* | by customer requirement |
| Mixing head speed | max. 600 U/min. |
| Air consumption | max. 3.000 l/h |
| Weight* | 100 kg |
| Dimensions (L/W/H)* | 90/56/45 cm |
| Voltage supply | 400 V / 50Hz |
| Power consumption* | max. 1,5 kW |
* The data refersto the standard models and customer-related recipes.
